SABIC launches new XENOY™ htx high-heat resin family to support vehicle lightweighting and electrification trends

• XENOY™ HTX resin provides a material solution for body-in-white components, battery protection systems and other structural automotive components
• Brand new polyester-based resin technology responds to vehicle lightweighting and electrification trends and provides a drop-in alternative to PA66 compounds and alloys
• SABIC to showcase prototype rocker panel for EV battery side protection at K 2019

At K 2019 today, global petrochemicals leader SABIC announced the launch of XENOY™ HTX resin, a polyester-based, high-heat technology that can enable the production of light, impact resistant and high performing structural automotive applications.

XENOY HTX resin is especially relevant for today’s automakers, who need new polymer solutions for the production of structural components capable of withstanding higher temperatures, including those of e-coating lines operating above 180°C. Relevant applications include body-in-white components, structural reinforcements and battery protection systems for electric vehicles (EVs).

XENOY HTX resin is available in unfilled and glass-filled grades and offers significant weight savings compared to steel and aluminum. The new family of thermoplastic materials from SABIC also provides a drop-in alternative for polyamide 6.6 (PA66) compounds and alloys, which has recently seen frequent supply shortages and price fluctuations.

“We are strongly committed to investing in the future of the automotive industry by developing technologies that can deliver greater value and help our customers either meet new requirements or stretch the limits of performance,” says Amanda Roble, Global Leader of SABIC’s Automotive Business. “A good proof point of that commitment is our new XENOY HTX resin portfolio, which answers the call for material solutions that can allow structural reinforcements to go through the e-coat process and maintain their energy absorbing properties and other performance attributes over a wider temperature range.”

The first products of this new high-heat resin technology to be introduced at K 2019 and available for sampling include unfilled XENOY HTX 950 as well as two glass fiber reinforced grades, XENOY HTX 975 and XENOY HTX 575.

The unfilled resin is modified to absorb significant energy and withstand plastic deformation in the event of a crash. SABIC is targeting the material for use as a lightweight metal replacement solution in new safety applications, including side rockers designed to offer protection for battery modules mounted to the floor of EVs.

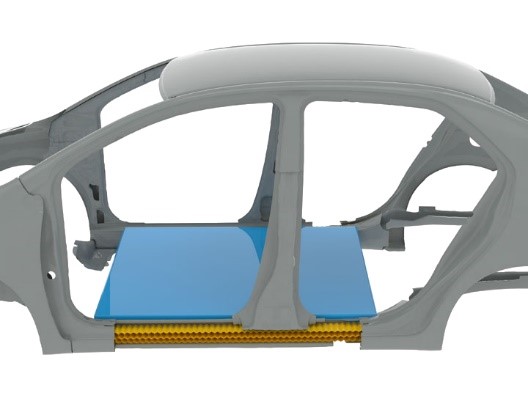

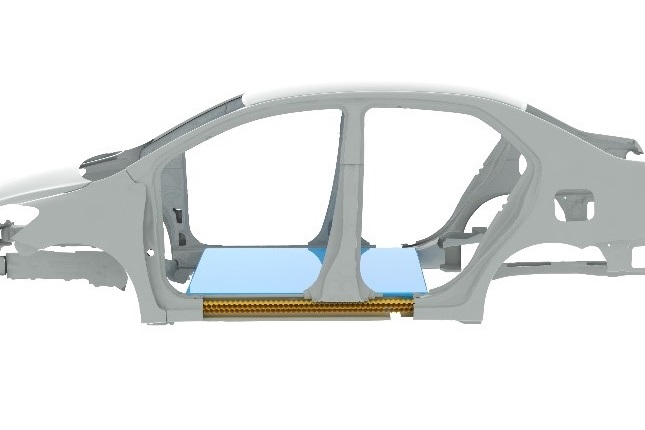

At K 2019, SABIC is displaying the structural lightweighting capabilities of the new technology with a 3D printed prototype of a rocker panel reinforcement designed for EV battery side protection.

When exposed to temperatures of -30°C, many competitive engineering plastics tend to become brittle and fracture under load. XENOY HTX can deliver low-temperature ductility and a very high elongation that enables stable performance under such conditions. In addition, the new technology provides enhanced flowability, resulting in greater design freedom for complex geometries and cost-efficient part consolidation.

Hybrid honeycomb designs with XENOY HTX can potentially save up to 60 percent of the weight normally associated with traditional all-metal based, multi-piece steel or extruded aluminum crash countermeasures, without compromising on dimensional stability, rigidity and mechanical strength.

The glass-filled grades are particularly suitable for demanding body-in-white structures that must be capable of enduring e-coating cycles of 30 minutes at temperatures between 180°C and 220°C. The grade can also be used to produce other structural parts subjected to high service temperatures, including front-end modules, front brackets and under-the-hood components.

The significant lightweighting potential of XENOY HTX is not only instrumental for improving the fuel efficiency of combustion engine vehicles, but also for offsetting some of the substantial weight added by battery modules in EVs.

For further information about SABIC’s new XENOY HTX high-heat resins, visit the company’s stand (D42) in Hall 6 during K 2019 in Düsseldorf, Germany, from October 16 to 23, 2019.

Unfilled XENOY™ HTX resin can absorb significant energy and withstand plastic deformation in the event of a crash. SABIC is targeting the material for use as a lightweight metal replacement solution in new safety applications, such as side rockers designed to offer protection for battery modules mounted to the floor of EVs.

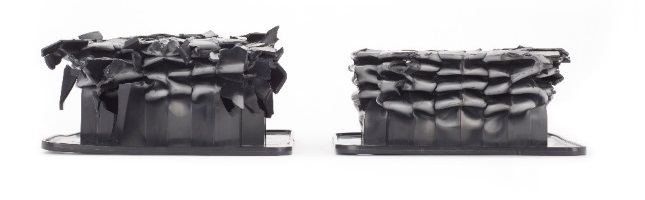

An impact test of two injection-molded honeycomb crash-protection parts made out of XENOY™ HTX resin, run through the e-coat process, demonstrates the material’s high degree of energy absorption at a wide temperature range. The part to the left, subjected to -30 degrees Celsius, shows good ductility and energy absorption and compares favorably with the part to the right, which underwent testing at room temperature.
